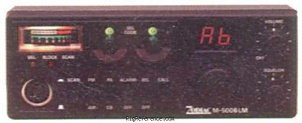

Zodiac M-5006 LM

General characteristics

HAM bands

11m (CB)

Frequency stability

?

Tuning steps

Channelized

Memories

6 channels in 1 bank(s)

Receiver

RX-range

26.900-31.000 MHz

Modulations

AM   FM

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

26.900-31.000 MHz

Modulations

AM   FM

RF-output

3.5 W

Connections

Antenna

-

Impedance

50Ω

Other

-

Electrical

Power requirements

?

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

215 × 63 × 165 mm (8.46 × 2.48 × 6.50 in)

Weight

?

Form factor

Mobile

Manufactured

Between 1981 and 1988

Other features

Usage

Citizen Band (27Mc)

Features + options

-

Accessories

-

RigReference ID

4993

MPN

ZODIAC-M-005006-LM
