Zodiac M-5012

Mobile Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Zodiac M-5012 rigs and spare parts on eBay

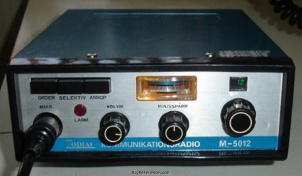

The Zodiac M-5012 is a mobile transceiver. It operates on the 11m (CB) band with a frequency range of 26.965-27.255 MHz for both receive and transmit. The RF output is 3.5 W. It features channelized tuning steps, an internal speaker, 1 memory bank with 12 channels, and requires 13.8 V DC power. Dimensions are 63 × 215 × 165 mm.

General characteristics

HAM bands: 11m (CB)
Frequency stability: ?
Tuning steps: Channelized
Memories: 12 channels in 1 bank(s)

Receiver

RX-range: 26.965-27.255 MHz
Modulations: AM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: Internal speaker

Transmitter

TX-range: 26.965-27.255 MHz
Modulations: AM
RF-output: 3.5 W

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8 V DC
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 215 × 63 × 165 mm (8.46 × 2.48 × 6.50 in)
Weight: ?
Form factor: Mobile
Manufactured: Between 1975 and 1984

Other features

Usage: Citizen Band (27Mc)
Features + options: -
Accessories: -
RigReference ID: 4994
MPN: ZODIAC-M-005012

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents
