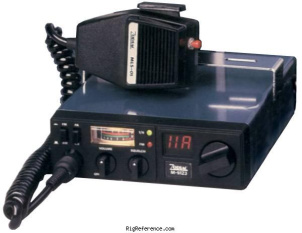

Zodiac M-5123

Mobile Transceiver

Specs Manuals (0) Reviews (0) Prices (1) Compare

Find Zodiac M-5123 rigs and spare parts on eBay

The Zodiac M-5123 is a mobile transceiver. It operates on the 11m (CB) band with a frequency range of 26.965-27.255 MHz for both transmit and receive. The radio has channelized tuning steps, an RF output of 3.5 W, 1 memory bank with 23 channels, and a PA function. Dimensions are 45 × 170 × 155 mm.

General characteristics

HAM bands: 11m (CB)
Frequency stability: ?
Tuning steps: Channelized
Memories: 23 channels in 1 bank(s)

Receiver

RX-range: 26.965-27.255 MHz
Modulations: AM FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 26.965-27.255 MHz
Modulations: AM FM
RF-output: 3.5 W

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: ?
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 170 × 45 × 155 mm (6.69 × 1.77 × 6.10 in)
Weight: 1.20 kg (2.6 lbs)
Form factor: Mobile
Manufactured: Between 1984 and 1988

Other features

Usage: Citizen Band (27Mc)
Features + options: PA function
Accessories: -
RigReference ID: 4996
MPN: ZODIAC-M-005123

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Zodiac M-5123. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Zodiac M-5123 is around:

EUR 2.00

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2009	EUR 20.00	Used / Good	pienari
