Zodiac M-5126

Mobile Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Zodiac M-5126 rigs and spare parts on eBay

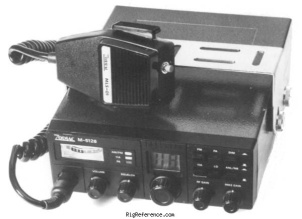

The Zodiac M-5126 is a mobile transceiver. It covers 26.965-27.255 MHz for both reception and transmission with channelized tuning steps. The radio has an RF output of 3.5 W, 1 memory bank with 23 channels, and features PA function, 11A quick access, ANL/NB, and SelCall. Dimensions are 63 × 215 × 165 mm and the weight is 1.9 kg.

General characteristics

HAM bands: 11m (CB)
Frequency stability: ?
Tuning steps: Channelized
Memories: 23 channels in 1 bank(s)

Receiver

RX-range: 26.965-27.255 MHz
Modulations: AM FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 26.965-27.255 MHz
Modulations: AM FM
RF-output: 3.5 W

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: ?
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 215 × 63 × 165 mm (8.46 × 2.48 × 6.50 in)
Weight: 1.90 kg (4.2 lbs)
Form factor: Mobile
Manufactured: Between 1984 and 1989

Other features

Usage: Citizen Band (27Mc)
Features + options: PA function
11A quick access
ANL/NB
SelCall
Accessories: -
RigReference ID: 4997
MPN: ZODIAC-M-005126
