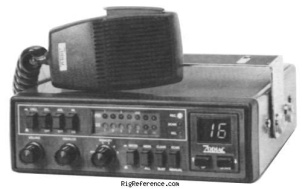

Zodiac Searcher 40

Mobile Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Zodiac Searcher 40 rigs and spare parts on eBay

Find the Zodiac Searcher 40 on Amazon

The Zodiac Searcher 40 is a mobile transceiver. It covers 26.965-27.255 MHz for both receive and transmit with channelized tuning steps. The RF output is 3.5 W. Audio output is through an internal speaker. It features 5 scanning memories, ANL, PA, and SelCall. The radio has 1 memory bank with 23 channels. Power requirements are 13.8 V DC. Current drain is 0.2 A in receive and 1.0 A in transmit. Dimensions are 56 × 179 × 211 mm.

General characteristics

HAM bands: 11m (CB)
Frequency stability: ?
Tuning steps: Channelized
Memories: 23 channels in 1 bank(s)

Receiver

RX-range: 26.965-27.255 MHz
Modulations: AM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: Internal speaker

Transmitter

TX-range: 26.965-27.255 MHz
Modulations: AM
RF-output: 3.5 W

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8 V DC
Current drain RX: 0.2 A
TX: 1.0 A

Physical

Dimensions (w×h×d): 179 × 56 × 211 mm (7.05 × 2.20 × 8.31 in)
Weight: 1.85 kg (4.1 lbs)
Form factor: Mobile
Manufactured: Between 197x and 198x

Other features

Usage: Citizen Band (27Mc)
Features + options: 5 scanning memories
ANL
PA
SelCall
Accessories: -
RigReference ID: 5003
MPN: ZODIAC-SEARCHER-000040
