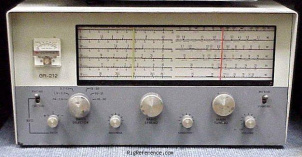

The Gonset GR-212 is a desktop receiver with a range 550kHz - 30MHz and (pre-WARC) band-spread on 80-10 meters. Quite rare these days.
The GR-212 has phenolic circuit-boards with several rectangular power resistors mounted flat on the boards. Despite the excellent ventilation afforded by the perforated metal cabinet, over time heat discolored the board beneath the resistors. The sensitivity from 14 MHz up was low. This is typical
of this grade and vintage of receiver. An outboard RF preamp helps noticeably. The BFO can be moved to achieve single signal reception.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- None
Receiver
- RX-range
- 0.55-30 MHz
- Modulations
- AM CW SSB
- Sensitivity
- From 14 MHz up: low
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double conversion, all tubes
- IF-frequencies
- 1st: 1650 kHz
2nd: 455 kHz - Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- -
- Impedance
- 50/75Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 1962 and 196x in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5010
- MPN
- GONSET-GR-000212
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Gonset GR-212. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
These estimates are based on the following prices:
