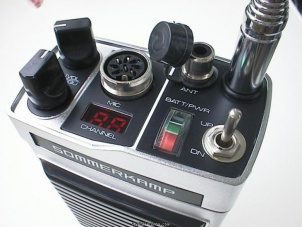

The Sommerkamp TS-1122FM is a handheld transceiver. The frequency range for both transmit and receive is 26.965-27.225 MHz with a frequency stability of ± 3 p.p.m. at 25°C and ± 8 p.p.m. at -10°C to +50°C. The tuning steps are 10 kHz. The RF output is 0.5 W and the audio output is 250 mW @ 8 ohm, 10% THD. It features 1 memory bank with 22 channels. Power requirements are 12V DC. Dimensions are 230 × 78 × 43.5 mm.
General characteristics
- HAM bands
- 11m (CB)
- Frequency stability
- ± 3 p.p.m. at 25°C ± 8 p.p.m. at -10°C to +50°C
- Tuning steps
- 10 kHz
- Memories
- 22 channels in 1 bank(s)
Receiver
- RX-range
- 26.965-27.225 MHz
- Modulations
- FM
- Sensitivity
- 1 µV (20dB SINAD)
- Selectivity
- ±3 kHz (-6 dB)
±7.5 kHz (-70 dB) - Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 250 mW @ 8 ohm, 10% THD
Transmitter
- TX-range
- 26.965-27.225 MHz
- Modulations
- FM
- RF-output
- 0.5 W
Connections
- Antenna
- RCA (Tulip) + Built-in telescopic
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 12V DC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 78 × 230 × 43.5 mm (3.07 × 9.06 × 1.71 in)
- Weight
- ?
- Form factor
- Handheld
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Citizen Band (27Mc)
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5011
- MPN
- SOMMERKAMP-TS-001122FM
