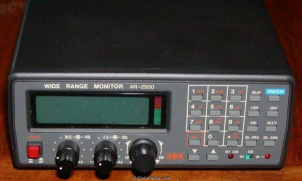

The AOR AR-2500 is a desktop base station scanner/receiver. It covers 5-550 MHz and 800-1300 MHz reception frequencies with tuning steps of 5, 12.5, or 25 kHz. The receiver has 62 memory banks and 1984 memory channels. Audio output is 500 mW into 8 ohms at 10% THD. It requires 11-16V DC power and weighs 650 gr. Dimensions are 55 × 150 × 180 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- 5 / 12.5 / 25 kHz
- Memories
- 1984 channels in 62 bank(s) @ 36 channels/second
Receiver
- RX-range
- 5-550 / 800-1300 MHz
- Modulations
- AM FM W-FM CW USB LSB
- Sensitivity
- FM 0.45µV @ 12 dB SINAD
W-FM 1.0µV @ 12 dB SINAD
AM 1.0µV @ 10 dB S/N - Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 500 mW into 8 ohms @ 10% THD
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 11-16V DC
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 150 × 55 × 180 mm (5.91 × 2.17 × 7.09 in)
- Weight
- 650 gr (1.4 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1985 and 199x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5012
- MPN
- AOR-AR-002500
Manuals, diagrams and brochures
- AOR AR2500 Wideband Receiver Manual PDF - 572.9 kB, submitted by home video
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used AOR AR-2500. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the AOR AR-2500 is around:
- USD 133.00 ~ USD 18.00
These estimates are based on the following prices:
