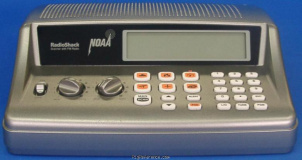

RadioShack / Realistic Pro-405

General characteristics

HAM bands

?

Frequency stability

?

Tuning steps

?

Memories

200 channels in 20 bank(s) @ 80 channels/second

Receiver

RX-range

29-54 / 87.3-174 / 380-512 MHz (with gaps)

Modulations

FM

Sensitivity

29-54 MHz 0.5 µV
87.3-107.9 MHz ((S+N)/N 30 dB) 1.0 µV
108-136.99166 MHz 1.0 µV
137-174 MHz 0.5 µV
380-512 MHz 0.7 µV
(S+N)/N 20 dB unless noted

Selectivity

+/-8 kHz -6 dB
+/-17 kHz -50 dB

Filters

?

Receiver system

Double conversion superheterodyne

IF-frequencies

1st: 10.7 MHz
2nd: 455 kHz

Image rejection

70 dB

Audio output

0.7 W @ 10% THD

Connections

Antenna

BNC

Impedance

50Ω

Other

-

Electrical

Power requirements

9V DC

Current drain RX

8 W

TX

-

Physical

Dimensions (w×h×d)

210 × 60 × 175 mm (8.27 × 2.36 × 6.89 in)

Weight

700 gr (1.5 lbs)

Form factor

Base Station

Manufactured

Between 2008 and 20xx

Other features

Usage

Amateur / Ham radio operators

Features + options

NOAA Wx alert
FM broadcast receive
No Mil-Air and no Trunking

Accessories

-

RigReference ID

5027

MPN

RADIOSHACK-/-REALISTIC-PRO-000405
