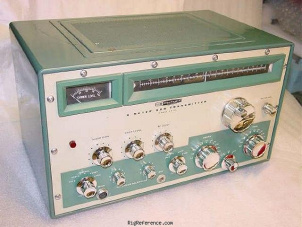

The Heathkit HX-30 is a 50-54 MHz transmitter supporting SSB/CW and AM modulations. RF output is 10 W PEP for SSB/CW and 2.5 W (4 W typical) for AM. It operates on mains power (117 V DC).
General characteristics
- HAM bands
- 6m
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- None
Transmitter
- TX-range
- 50-54 MHz in 4 segments
- Modulations
- AM CW USB LSB
- RF-output
- SSB/CW: 10 W PEP, AM: 2.5 W (4 W typical)
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains (117 V DC)
- Current drain RX
- -
- TX
- ?
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 1962 and 1965 in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5042
- MPN
- HEATHKIT-HX-000030
