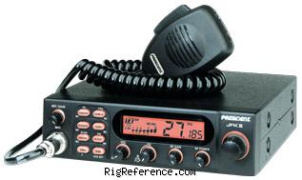

The President JFK II is a mobile transceiver. It covers 26.965-27.405 MHz for both reception and transmission. The RF output power is 4 W FM / 1 W AM. Audio output is 3 W max. It features 1 memory bank with 40 channels. Power requirements are 13.8 V DC. Current drain is 400 mA in receive mode and 3 A in transmit mode. Dimensions are 51 × 180 × 188 mm.
General characteristics
- HAM bands
- 11m (CB)
- Frequency stability
- ?
- Tuning steps
- Channelized
- Memories
- 40 channels in 1 bank(s)
Receiver
- RX-range
- 26.965-27.405 MHz
- Modulations
- AM FM
- Sensitivity
- 0.7 μV - 110 dBm (AM/FM)
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 3 W max
Transmitter
- TX-range
- 26.965-27.405 MHz
- Modulations
- AM FM
- RF-output
- 4 W FM / 1 W AM
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC
- Current drain RX
- 400 mA
- TX
- 3 A
Physical
- Dimensions (w×h×d)
- 180 × 51 × 188 mm (7.09 × 2.01 × 7.40 in) (without antenna plug and/or heatsink )
- Weight
- 1.50 kg (3.3 lbs)
- Form factor
- Mobile
- Manufactured
- Between 20xx and 20xx
Other features
- Usage
- Citizen Band (27Mc)
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5049
- MPN
- PRESIDENT-JFK II
Manuals, diagrams and brochures
- President JFK II Owner's manual (EN/FR/ES/DE) PDF - 1.67 MB, submitted by RigReference
- Manual President JFK II A Plus PDF - 1.49 MB, submitted by Gerd
- President JFK-2 PDF - 1.48 MB, submitted by Gerd
- Modifikacia JFK II ASC PDF - 1.48 MB, submitted by Gerd
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used President JFK II. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
These estimates are based on the following prices:
