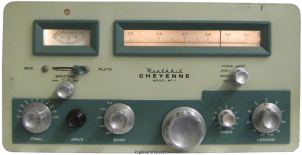

The Heathkit MT-1 'Cheyenne' transmitter matches the Heathkit MR-1 'Comanche' receiver.
It features a built-in VFO, controlled carrier modulator, four RF stages, 6146 final amplifier, and pi-network (coaxial) output coupling. A spotting switch is provided to allow tuning the transmitter "off-the-air" and a specially designed ceramic element microphone with push-to-talk switch assures properly shaped audio response for effective modulation with plenty of "punch." All power necessary for mobile operation is furnished by the Heathkit HP-10 mobile power supply. Simple conversion to fixed station operation is easily accomplished by using the Heathkit HP-20 AC power supply. Styling of both the "Comanche" and "Cheyenne" features a one-piece die-cast front panel with raised meter, tuning dial and control panel escutcheons, and die-cast knobs. Color styled in two-tone gray and gray-green.
General characteristics
- HAM bands
- 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Transmitter
- TX-range
- 80 / 40 / 20 / 15 / 10 m
- Modulations
- CW
- RF-output
- 90 W
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- External PSU (500-600V DC @ 100 mA; 6.3 V @ 4.7 A or 12.6 V @ 2.35 A AC/DC)
- Current drain RX
- -
- TX
- ?
Physical
- Dimensions (w×h×d)
- 308 × 155 × 254 mm (12.13 × 6.10 × 10.00 in)
- Weight
- 7.00 kg (15.4 lbs)
- Form factor
- Mobile
- Manufactured
- Between 195x and 196x in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5051
- MPN
- HEATHKIT-MT-000001-'CHEYENNE'
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Heathkit MT-1 'Cheyenne'. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Heathkit MT-1 'Cheyenne' in Good condition is around:
- USD 83
These estimates are based on the following prices:
