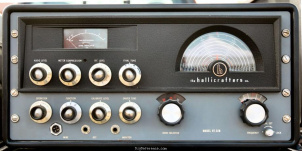

The Hallicrafters HT-32B is a 10-80 m transmitter. RF output is CW/SSB: 70-100 W, AM: 17-25 W. Dimensions are 267 × 508 × 432 mm. It weighs 39 kg and operates from Mains power.
General characteristics
- HAM bands
- 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- None
Transmitter
- TX-range
- 10-80 m
- Modulations
- AM CW SSB
- RF-output
- CW/SSB: 70-100 W, AM: 17-25 W
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- -
- TX
- ?
Physical
- Dimensions (w×h×d)
- 508 × 267 × 432 mm (20.00 × 10.51 × 17.01 in)
- Weight
- 39.00 kg (86.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1960 and 1964 in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5052
- MPN
- HALLICRAFTERS-HT-000032B
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Hallicrafters HT-32B. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Hallicrafters HT-32B is around:
- USD 8.00
These estimates are based on the following prices:
