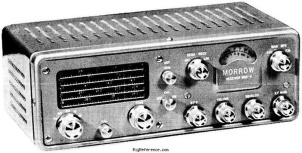

The Morrow MB-5 pairs with the Morrow MB-560 to form a very compact transceiver set. The MB-5/MB-560 where followed by the Morrow MB-6 / Morrow MB-565 combination in 1958.
General characteristics
- HAM bands
- 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 80-10 m
- Modulations
- AM CW SSB
- Sensitivity
- 0.5 µV on amateur bands
- Selectivity
- 4 kHz (-6 dB)
- Filters
- ?
- Receiver system
- Double conversion, 12 tubes
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 6 or 12V DC or mains
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- ?
- Weight
- 6.80 kg (15.0 lbs) (shipping weight)
- Form factor
- Mobile
- Manufactured
- Between 195x and 19xx in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5061
- MPN
- MORROW-MB-000005
