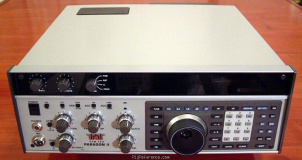

The Ten-Tec Paragon II (586) is a 10-160 m + WARC transceiver. It has an RX frequency range of 100 kHz - 30 MHz and a TX frequency range of 10-160 m + WARC bands. The rig features filters of 6 / 2.4 kHz (optional 1.8 / 0.5 / 0.25 kHz), a speech processor, noise blanker, dual VFO, TX split/RX split, 7 character alpha tags, clock and RS-232 interface. It has an RF output of 100 W and 1 memory bank with 62 channels. The Paragon II requires 13.8V DC power.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 62 channels in 1 bank(s)
Receiver
- RX-range
- 100 kHz - 30 MHz
- Modulations
- AM FM CW USB LSB FSK
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- 6 / 2.4 kHz (optional 1.8 / 0.5 / 0.25 kHz)
- Receiver system
- ? conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC
- Modulations
- AM FM CW USB LSB FSK
- RF-output
- 100 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 199x and 199x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Speech processor
Noise blanker
Dual VFO
TX split / RX split
7 Character alpha tags
Clock
RS-232 - Accessories
- -
- RigReference ID
- 5082
- MPN
- TEN-TEC-PARAGON-II-(000586)
Manuals, diagrams and brochures
- TEN-TEC-586 Paragon II Operator's Manual PDF - 4.38 MB, submitted by RigReference
