Linton LT-71A

Handheld UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Linton LT-71A rigs and spare parts on eBay

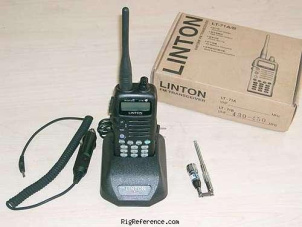

The Linton LT-71A is a handheld UHF transceiver. It covers 430-450 MHz for both transmit and receive with a frequency stability of ±2.5ppm. Tuning steps are selectable at 5, 6.25, 12.5, or 25 kHz. RF output is 2 W. It features 1 memory bank with 60 channels. Power is supplied by a Li-ion battery. The LT-71A weighs 300 gr with the battery. Dimensions are 112 × 54 × 34 mm.

General characteristics

HAM bands: 70cm
Frequency stability: ±2.5ppm
Tuning steps: 5 / 6.25 / 12.5 / 25 kHz
Memories: 60 channels in 1 bank(s)

Receiver

RX-range: 430-450 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 430-450 MHz
Modulations: -
RF-output: 2 W

Connections

Antenna: SMA
Impedance: 50Ω
Other: -

Electrical

Power requirements: Li-ion Battery
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 54 × 112 × 34 mm (2.13 × 4.41 × 1.34 in)
Weight: 300 gr (10.6 oz) with battery
Form factor: Handheld
Manufactured: Between 200x and 201x in China

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 5099
MPN: LINTON-LT-000071A

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents
