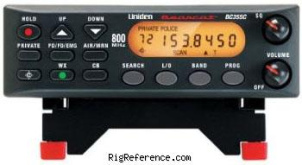

Uniden-Bearcat BC355C

General characteristics

HAM bands

6m

Frequency stability

?

Tuning steps

5 / 12.5 kHz

Memories

300 channels in bank(s) @ 50 channels/second

Receiver

RX-range

25-54 / 108-174 / 406-512 / 806-956 MHz

Modulations

AM   FM   W-FM

Sensitivity

25-28: 0.4 μV
28-54: 0.2 μV
108-137: 0.4 μV
137-174: 0.2 μV
406-512:0.3 μV
806-956: 0.4 μV
(12 dB SINAD)

Close-call
25-54: 450 μV
137-174: 150 μV
406-512: 130 μV
108-137: 200 μV
806-956: 450 μV

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

1.2 W

Connections

Antenna

BNC

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8V DC

Current drain RX

?

TX

-

Physical

Dimensions (w×h×d)

132 × 41 × 146 mm (5.20 × 1.61 × 5.75 in)

Weight

?

Form factor

Mobile

Manufactured

Between 200x and 200x

Other features

Usage

Amateur / Ham radio operators

Features + options

Close-call
Backlit Display
~3600 Pre-programmed channels

Accessories

-

RigReference ID

5102

MPN

UNIDEN-BEARCAT-BC000355C

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Uniden-Bearcat BC355C. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Uniden-Bearcat BC355C is around:

• EUR 25.00 ~ EUR 68.00

Price History Chart

These estimates are based on the following prices:
