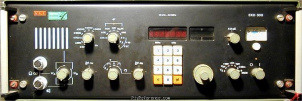

The RFT EKD-300 is a desktop shortwave receiver. It covers 14 kHz to 29,99999 MHz with tuning steps of 0.0001 kHz. The receiver system is double conversion superheterodyne with IF frequencies of 1st: 70.2 MHz and 2nd: 200 kHz. Audio output is 0.5 W. It features RF-Gain, S-Meter, Sync-Detector, Keypad, and RTTY-demodulator. The EKD-300 weighs 24 kg and requires mains or 12V DC power. Dimensions are 395 × 540 × 198 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- 0.0001 kHz
- Memories
- ?
Receiver
- RX-range
- 14 kHz - 29,99999 MHz
- Modulations
- AM AM-sync CW USB LSB ISB RTTY
- Sensitivity
- SSB < 0,5 uV
- Selectivity
- 100 Hz, 500 Hz, 1,4 kHz, 3 kHz, 6 kHz,
2,7 / 3,4 kHz (SSB, -6 dB) - Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 70.2 MHz
2nd: 200 kHz - Image rejection
- ?
- Audio output
- 0.5 W
Connections
- Antenna
- Clamps / screws
- Impedance
- 75Ω
- Other
- -
Electrical
- Power requirements
- Mains or 12V DC
- Current drain RX
- 50 W
- TX
- -
Physical
- Dimensions (w×h×d)
- 540 × 395 × 198 mm (21.26 × 15.55 × 7.80 in) table top version
- Weight
- 24.00 kg (53.0 lbs) table top version
- Form factor
- Base Station
- Manufactured
- Between 1980 and 198x in East Germany
Other features
- Usage
- Commercial / Land mobile communication
- Features + options
- RF-Gain
S-Meter
Sync-Detector
Keypad
RTTY-demodulator - Accessories
- -
- RigReference ID
- 5105
- MPN
- RFT-EKD-000300
