Successor of the Military RT-671/PRC-47, developed by Hughes.

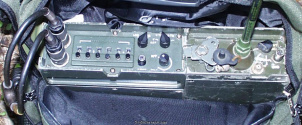

The PRC-104 consists of the RT 1209 / URC Transceiver and AM-6874 / PRC-104 Amplifier and tuner.

The RT 1209 / URC is a miniturized SSB- transceiver in USB. LSB or Data mode from 2 to 29.999.9 MHz 100 Hz increments. Connections are provided for handset, headset, CW key or data input. The transmitter's output is a carrier of 250 mW. 26.5V, needed for the transceiver, are provided by the amplifier / tuner unit.

The AM-6874 / PRC-104 Amplifier and tuner amplifies the 0.25W from the transceiver to 20 W, has a built- in tuner and can switch the antenna output to different antennas.

Frequency is selected by decade push buttons.

Unlike its predecessors, there are no operational elements or lamps on the front. These functions are checked by the radio itself, and monitored as special tones to the handsets- especially useful at a tactical blackout.

General characteristics

HAM bands
?
Frequency stability
1 ppm
Tuning steps
0.1 kHz
Memories
?

Receiver

RX-range
2-29.9999 MHz
Modulations
AM   CW   USB   LSB   FSK
Sensitivity
SSB: 0.7 µV for 10 dB SINAD
AM: 3 µV for 10 dB SINAD
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
75 dB
Audio output
20 mW max

Transmitter

TX-range
2-29.9999 MHz
Modulations
AM   CW   USB   LSB   FSK
RF-output
20 W PEP

Connections

Antenna
BNC + Proprietary (military)
Impedance
50Ω
Other
-

Electrical

Power requirements
20-32V DC
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
31.75 × 26.67 × 6.66 mm (1.25 × 1.05 × 0.26 in)
Weight
6.36 kg (14.0 lbs)
Form factor
Handheld
Manufactured
Between 1976 and 19xx in by Hughes and Tadiran

Other features

Usage
Military communication
Features + options
-
Accessories
-
RigReference ID
5109
MPN
MILITARY-AN/PRC-000140
