Clansman PRC-351

Handheld VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

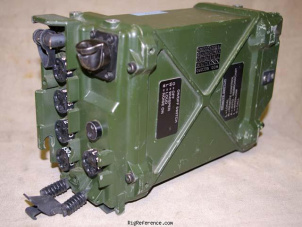

Side view - image courtesy of www.armyradio.com - Submitted by elmer

The PRC-351 has been designed to provide command communications at battalion and company level for dismounted troops. It was also used in vehicles by mounted troops. The PRC-351 replaced the older A41 and A42 British VHF radios.

General characteristics

HAM bands: 6m
Frequency stability: 5 ppm per year
Tuning steps: 25 kHz
Memories: ?

Receiver

RX-range: 30-76 MHz
Modulations: N-FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: 11.525 MHz
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 30-76 MHz
Modulations: N-FM
RF-output: 4 W

Connections

Antenna: Proprietary (military)
Impedance: 50Ω
Other: -

Electrical

Power requirements: 24V DC
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): ?
Weight: ?
Form factor: Handheld
Manufactured: Between 19xx and 19xx in RACAL BCC Ltd. in England

Other features

Usage: Military communication
Features + options: Range: 10 km when used with 1.2 meter standard whip antenna in open country side, and up to 20 km when used with a vehicle antenna.
Accessories: -
RigReference ID: 5113
MPN: CLANSMAN-PRC-000351

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Clansman PRC-351. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Clansman PRC-351 is around:

USD 210 ~ USD 390

This estimate is based on similar equipment and may not reflect the exact value of this model.
