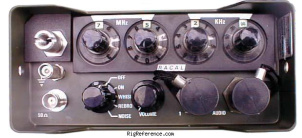

Racal TRA-967

Manpack VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Racal TRA-967 was primarily designed as a manpack but can be used as a fixed or as a vehicle station. Provides VHF Narrow Band FM Transmission and Reception in the 36-76 MHz frequency range with 25 kHz channel spacing. A total of 1600 synthesiser-controlled channels are available with in the frequency range, includes a pre-tuned antenna-matching unit. Power output more than 1 Watt. Quick frequency selection using rotary controls. The four frequency digits are illuminated by Tritium Beta Lights, which do not require a power supply. Re-broadcast facilities are also incorporated within the set. The TRA-967 is completely sealed and is Rust and Waterproof. Operates from 12V DC Battery.

General characteristics

HAM bands: 6m
Frequency stability: ?
Tuning steps: 25 kHz
Memories: 1600 channels in 1 bank(s)

Receiver

RX-range: 36-76 MHz
Modulations: N-FM
Sensitivity: 12dB for 1 µV EMF with 3 kHz deviation at 1 kHz
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: 50 mW

Transmitter

TX-range: 36-76 MHz
Modulations: N-FM
RF-output: >1 W

Connections

Antenna: BNC + Proprietary (military)
Impedance: 50Ω
Other: -

Electrical

Power requirements: 12V DC
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 166 × 76 × 285 mm (6.54 × 2.99 × 11.22 in)
Weight: 3.50 kg (7.7 lbs)
Form factor: Portable
Manufactured: Between 19xx and 19xx in Great Britain

Other features

Usage: Military communication
Features + options: -
Accessories: -
RigReference ID: 5120
MPN: RACAL-TRA-000967

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!
