Uniden-Bearcat BC855XLT

Desktop VHF/UHF Scanner / receiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

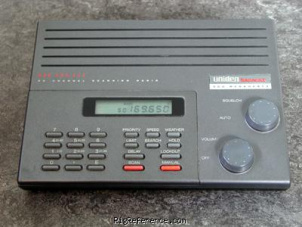

Front view (Courtesy of discriminator.nl) - Submitted by elmer

Find Uniden-Bearcat BC855XLT rigs and spare parts on eBay

Find the Uniden-Bearcat BC855XLT on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

The Uniden Bearcat BC-855XLT is a 50 (5 x 10) channel base scanner that covers VHF Low Band, Aircraft, VHF High Band, UHF and the 800 MHz public service band. The Priority channel is checked every two seconds. Channel Lockout allows you to skip channels you don't want to hear. The Weather scan feature gives you instant access to your local NOAA weather station. Programming is easy. Just key in the desired frequency. Scanning is at 5 or 15 channels per second. The LCD display is backlit.

General characteristics

HAM bands: 6m 2m 70cm 33cm
Frequency stability: Not specified
Tuning steps: 5 / 12.5 kHz
Memories: 50 channels in 10 bank(s) @ 15 channels/second

Receiver

RX-range: 29-54 / 108-174 / 410-512 / 806-950 MHz
Modulations: AM FM
Sensitivity: 29-54 / 137-174 MHz: 0.3 µV
406-512 MHz: 0.3 µV
806-956 MHz: 1.0 µV
108-137 MHz: 0.8 µV
Selectivity: 15 kHz @ -50 dB
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: 350 mW, 8 ohms, 10% THD

Connections

Antenna: Built-in telescopic
Impedance: 50Ω
Other: External speaker

Electrical

Power requirements: 12 V DC
Current drain RX: ?
TX: -

Physical

Dimensions (w×h×d): 230 × 57 × 165 mm (9.06 × 2.24 × 6.50 in)
Weight: 1.38 kg (3.0 lbs)
Form factor: Base Station
Manufactured: Between 1990 and 199x in Philippines

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 5126
MPN: UNIDEN-BEARCAT-BC000855XLT

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Bearcat BC855XLT Operating Guide PDF - 1.01 MB, submitted by RigReference

: Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Uniden-Bearcat BC855XLT. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by

Login or Register to submit prices
