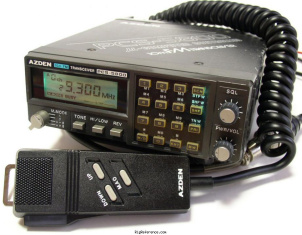

Azden PCS-5800

General characteristics

HAM bands

10m

Frequency stability

?

Tuning steps

?

Memories

20 channels in 1 bank(s)

Receiver

RX-range

28 MHz

Modulations

FM

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

10 m

Modulations

FM

RF-output

10 W

Connections

Antenna

SO-239

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

140 × 50 × 182 mm (5.51 × 1.97 × 7.17 in)

Weight

1.40 kg (3.1 lbs)

Form factor

Mobile

Manufactured

Between 198x and 198x in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

5143

MPN

AZDEN-PCS-005800
