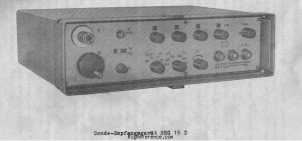

The SEG 15 (SEG = Sende - Empfang Gerät) made by the East German RFT company was intended for both military and marine use. The versatile rig can be used stationary, mobile and portable. It requires 24V DC, but converters for both 12V DC and 110/220V AC were available. A battery compartment which could accommodate 20 different battery types (!) could also be attached to the back. The 12V converter could also be used as a voltage stabilizer for both 12 and 24V.

Tuning is done with 4 decade switches in 1 kHz steps. A clarifier tunes an additional +/- 500 Hz.

The SEG 15 has a connector for a telescopic whip and a 50 ohm BNC for fixed antennas. A built-in antenna tuner works for both receiving and transmitting.

General characteristics

HAM bands
160m  80m  60m  40m
Frequency stability
?
Tuning steps
1 kHz
Memories
None

Receiver

RX-range
1.6-12 MHz
Modulations
AM   CW   SSB
Sensitivity
?
Selectivity
?
Filters
2.4 kHz
Receiver system
superheterodyne
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
1.6-12 MHz
Modulations
AM   CW   SSB
RF-output
3/15 W

Connections

Antenna
BNC + Built-in telescopic
Impedance
50Ω
Other
-

Electrical

Power requirements
24/12V DC, 110/220V AC, batteries
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
374 × 110 × 390 mm (14.72 × 4.33 × 15.35 in) incl. 110/220V power supply
Weight
10.00 kg (22.1 lbs)
Form factor
Portable
Manufactured
Between 1975 and 1988 in East Germany

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
5206
MPN
RFT-SEG-000015

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used RFT SEG 15. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the RFT SEG 15 is around:

  • EUR 17.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2010 EUR 112.00 Used / Okay deBug
