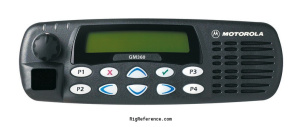

Motorola GM-360

Mobile VHF/UHF Transceiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

Find Motorola GM-360 rigs and spare parts on eBay

The Motorola GM-360 is a Mobile VHF/UHF Transceiver. It covers 29.7-36 MHz, 36.42 MHz, 42-50 MHz, 136-174 MHz and 403-470 MHz for both transmit and receive. The GM-360 has an image rejection of 70 dB and an RF output of 40-60 W (VHF-low), 1-25 W (VHF-high / UHF). It features CTCSS/PL and Select 5/5-tone selcall, VOX, DTMF, voice encryption and trunking options. The transceiver requires 10.8-15.6 VDC power and weighs 2.06 kg. Dimensions are 59 × 179 × 250 mm.

General characteristics

HAM bands: 6m
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 29.7-36 MHz
36.42 MHz
42-50 MHz
136-174 MHz
403-470 MHz
Modulations: FM
Sensitivity: < 0.3 µV (12 dB SINAD)
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: 70 dB
Audio output: ?

Transmitter

TX-range: 29.7-36 MHz
36.42 MHz
42-50 MHz
136-174 MHz
403-470 MHz
Modulations: FM
RF-output: 40-60 W (VHF-low), 1-25 W (VHF-high / UHF)

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: 10.8-15.6 VDC
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 179 × 59 × 250 mm (7.05 × 2.32 × 9.84 in)
Weight: 2.06 kg (4.5 lbs)
Form factor: Mobile
Manufactured: Between 199x and 20xx

Other features

Usage: Commercial / Land mobile communication
Features + options: CTCSS/PL and Select 5/5-tone selcall. VOX. DTMF. Voice encryption and trunking options.
Accessories: -
RigReference ID: 5212
MPN: MOTOROLA-GM-000360

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Motorola GM-360 User Guide PDF - 560.7 kB, submitted by Gerd
