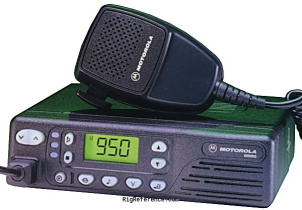

Motorola GM-950 N3

Mobile VHF/UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Motorola GM-950 N3 rigs and spare parts on eBay

Find the Motorola GM-950 N3 on Amazon

The Motorola GM-950 N3 is a Mobile VHF/UHF Transceiver. It covers 68-88 MHz, 136-174 MHz and 403-470 MHz for both receive and transmit. The radio features an image rejection of > 70 dB, an RF output of 5/25 W, and 1 memory bank with 128 channels. It requires 13.8V DC power and weighs 1.05 kg. Dimensions are 44 × 168 × 160 mm. The GM-950 N3 includes Select 5/5-tone selcall, CTCSS/PL, and a split mounting option.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: ?
Memories: 128 channels in 1 bank(s)

Receiver

RX-range: 68-88 MHz
136-174 MHz
403-470 MHz
Modulations: FM
Sensitivity: < 0.35 µV (12 dB SINAD)
Selectivity: > 60 dB (12.5 kHz)
> 70 dB (20/25 kHz)
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: > 70 dB
Audio output: ?

Transmitter

TX-range: 68-88 MHz
136-174 MHz
403-470 MHz
Modulations: FM
RF-output: 5/25 W

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 168 × 44 × 160 mm (6.61 × 1.73 × 6.30 in)
Weight: 1.05 kg (2.3 lbs)
Form factor: Mobile
Manufactured: Between 200x and 20xx

Other features

Usage: Commercial / Land mobile communication
Features + options: Select 5/5-tone selcall. CTCSS/PL. Split mounting option.
Accessories: -
RigReference ID: 5216
MPN: MOTOROLA-GM-000950-N3
