Tecsun PL-350

Handheld HF/VHF Receiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Tecsun PL-350 rigs and spare parts on eBay

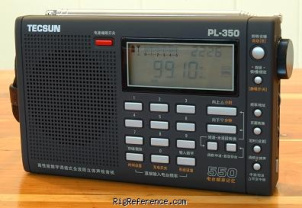

The Tecsun PL-350 is a handheld HF/VHF receiver. It covers 522-1620 kHz / 1.7-30 MHz / 87-108 MHz and has tuning steps of 9 / 10 / 100 kHz. The receiver system is single conversion with IF frequencies of 455 (AM) / 450 (SW) kHz. It features a 1 W audio output, 1 memory bank with 550 channels, and can be powered by mains or 4.5V DC (3 × R6 batteries). The PL-350 also includes clock & timer functions, a sleep timer, and selectable backlight mode options. Dimensions are 86 × 142 × 28 mm and it weighs 453 gr.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: 9 / 10 / 100 kHz
Memories: 550 channels in 1 bank(s)

Receiver

RX-range: 522-1620 kHz / 1.7-30 / 87-108 MHz
Modulations: AM FM W-FM Stereo SSB
Sensitivity: 3 µV
Selectivity: ?
Filters: ?
Receiver system: Single conversion
IF-frequencies: 455 (AM) / 450 (SW) kHz
Image rejection: ?
Audio output: 1 W

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: Mains or 4.5V DC (3 × R6 batteries)
Current drain RX: ?
TX: -

Physical

Dimensions (w×h×d): 142 × 86 × 28 mm (5.59 × 3.39 × 1.10 in)
Weight: 453 gr (16.0 oz)
Form factor: Portable
Manufactured: Between 20xx and 20xx

Other features

Usage: Amateur / Ham radio operators
Features + options: Clock & Timer Functions / Sleep Timer / Backlight Mode Options Selectable
Accessories: -
RigReference ID: 5237
MPN: TECSUN-PL-000350
