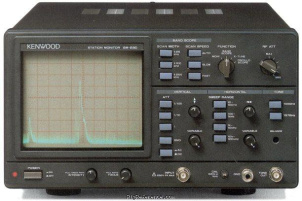

The Kenwood SM-230 Station Monitor is a multi-functional unit. It functions as a band-scope, monitor and tone generator. It is the ideal product for supporting, monitoring and calibrating equipment in radio stations.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Frequency range
- Range
- 1.8-150 MHz
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 260 × 155 × 427 mm (10.24 × 6.10 × 16.81 in) including protrusions
- Weight
- 7.50 kg (16.5 lbs)
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- - Bandscope ±25/100/250 kHz
- 10 MHz Oscilloscope
- Matches many Kenwood Transceivers
- Wideband Transmission Monitor
- RTTY X-Y Tuning Meter
- Built-in 1000/1575 Hz Two-Tone Generator
- Accessories
- -
- RigReference ID
- 5246
- MPN
- KENWOOD-SM-000230
Manuals, diagrams and brochures
- Kenwood SM-230 Service Manual and Service Note PDF - Unknown size, submitted by RigReference
