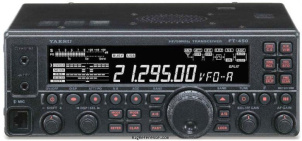

Yaesu FT-450AT

General characteristics

HAM bands

160m  80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  6m  10m

Frequency stability

?

Tuning steps

?

Memories

500 channels in 10 bank(s)

Receiver

RX-range

0.03-56 MHz

Modulations

AM   FM   CW   USB   LSB

Sensitivity

AM (10 dB S/N)
1.8-30 MHz: 2 µV
50-56 MHz: 1 µV
FM (12 dB SINAD)
28-30 MHz: 0.5 µV
50-56 MHz: 0.25 µV
SSB/CW (10 dB S/N)
1.8-30 MHz: 0.2 µV
50-56 MHz: 0.16 µV

Selectivity

AM: 6 kHz (-6 dB), 20 kHz (-60 dB)
FM: 9 kHz (-6 dB), 25 kHz (-60 dB)
SSB/CW: 2.2 kHz (-6 dB), 4.5 kHz (-60 dB)

Filters

10 kHz roofing

Receiver system

?

IF-frequencies

?

Image rejection

70 dB

Audio output

?

Transmitter

TX-range

10-160 m + WARC / 6 m

Modulations

AM   FM   CW   USB   LSB

RF-output

100 / 100 W

Connections

Antenna

SO-239

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC +/-10%

Current drain RX

1 A (squelched)

TX

Max 22 A

Physical

Dimensions (w×h×d)

223 × 84 × 217 mm (8.78 × 3.31 × 8.54 in)

Weight

3.60 kg (7.9 lbs)

Form factor

Mobile

Manufactured

Between 2007 and 2010

Other features

Usage

Amateur / Ham radio operators

Features + options

IF-DSP. IPO. VOX. CTCSS 10 KHz roofing filter. CW beacon feature.

Accessories

-

RigReference ID

5273

MPN

YAESU-FT-000450AT

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews & stories

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-450AT. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FT-450AT is around:

• EUR 120.00 ~ EUR 158.00
• USD 84.00 ~ USD 315.00

Price History Chart

These estimates are based on the following prices:
