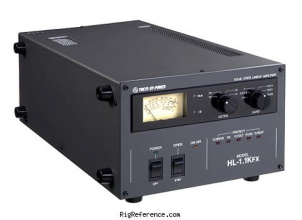

The Tokyo Hy-Power HL-1.1Kfx is a desktop shortwave linear amplifier. It covers 80-10 meters plus WARC bands and has an RF output of 600 W. The amplifier features built-in SWR/power meter and requires mains power (100~240V AC auto sensing). Dimensions are 142 × 232 × 392 mm and it weighs 9.5 kg.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- None
Transmitter
- TX-range
- 80-10 m + WARC
- Modulations
- All mode
- RF-output
- 600 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains (100~240V AC auto sensing)
- Current drain RX
- -
- TX
- 7.5 A @ 240 V AC
Physical
- Dimensions (w×h×d)
- 232 × 142 × 392 mm (9.13 × 5.59 × 15.43 in)
- Weight
- 9.50 kg (21.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 20xx and 20xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Input power: 100W max
Built-in SWR / Power meter - Accessories
- -
- RigReference ID
- 5292
- MPN
- TOKYO HY-POWER-HL-000001.1KFX
