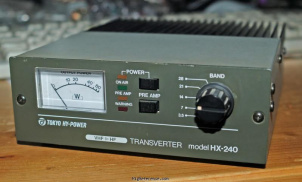

The Tokyo Hy-Power HX240 is a converter which allows a 2 meter transceiver to operate on the main HF bands. The HF output band is selected via a dial switch on the front. The HX-240 has a built-in power meter. Max RF input is 10 W.
General characteristics
- HAM bands
- 80m 40m 20m 15m 2m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 144 to 3.5/7/14/21/28 MHz
- Modulations
- FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144 to 3.5/7/14/21/28 MHz
- Modulations
- FM CW SSB
- RF-output
- ?
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- 7 A max
Physical
- Dimensions (w×h×d)
- 146 × 50 × 192 mm (5.75 × 1.97 × 7.56 in)
- Weight
- 1.30 kg (2.9 lbs)
- Form factor
- Mobile
- Manufactured
- Between 20xx and 20xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Input power: 2.5W / 10W switchable
- Accessories
- -
- RigReference ID
- 5297
- MPN
- TOKYO-HY-POWER-HX-000240
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Tokyo Hy-Power HX-240. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Tokyo Hy-Power HX-240 in Good condition is around:
- USD 280
These estimates are based on the following prices:
