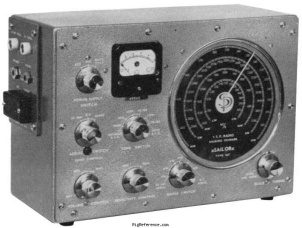

The Sailor 16T is a desktop shortwave receiver covering 275-425 kHz / 525-4000 kHz in 4 bands. It features a Direction Finding function on 275-425 kHz and operates on 12/24/32 V DC or 9 V DC from internal batteries. The current drain is 100-300 mA during reception. Dimensions are 220 × 320 × 150 mm. It weighs 8 kg.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 275-425 kHz / 525-4000 kHz in 4 bands
- Modulations
- AM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 12/24/32 V DC 9 V DC from internal batteries
- Current drain RX
- 100-300 mA
- TX
- -
Physical
- Dimensions (w×h×d)
- 320 × 220 × 150 mm (12.60 × 8.66 × 5.91 in)
- Weight
- 8.00 kg (17.7 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1963 and 196x in Denmark
Other features
- Usage
- Marine / Navy
- Features + options
- Direction Finding function on 275-425 kHz
- Accessories
- -
- RigReference ID
- 5304
- MPN
- SAILOR-000016T
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Sailor 16T. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
These estimates are based on the following prices:
