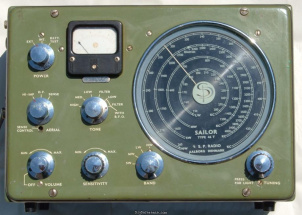

The Sailor 46T is a desktop shortwave receiver covering 150-4000 kHz in 4 bands. It features Direction Finding function on all bands and BFO. Power requirements are 12/24/32 V DC or 9 V DC from internal batteries. The current drain in receive mode is 100-300 mA. Dimensions are 220 × 335 × 150 mm. It weighs 6.5 kg.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 150-4000 kHz in 4 bands
- Modulations
- AM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 12/24/32 V DC 9 V DC from internal batteries
- Current drain RX
- 100-300 mA
- TX
- -
Physical
- Dimensions (w×h×d)
- 335 × 220 × 150 mm (13.19 × 8.66 × 5.91 in)
- Weight
- 6.50 kg (14.3 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1965 and 196x in Denmark
Other features
- Usage
- Marine / Navy
- Features + options
- Direction Finding function on all bands
BFO - Accessories
- -
- RigReference ID
- 5305
- MPN
- SAILOR-000046T
Manuals, diagrams and brochures
- Sailor-46T (serie B) (manual) PDF - 8.74 MB, submitted by Ron Ruub
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Sailor 46T. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Sailor 46T is around:
- EUR 11.00
- GBP 13.00
These estimates are based on the following prices:
