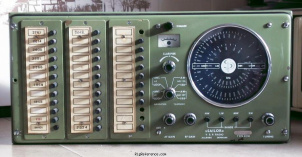

The Sailor R110 is a desktop shortwave receiver. It covers 150-4500 kHz in 4 bands with continuous tuning steps (kHz). The radio has 35 crystal controlled frequencies: 23 in the 1600-4200 kHz range and 12 in the 4.0-9.0 MHz range. It operates on 12/24 V DC, 110/220 V AC power. Dimensions are 230 × 350 × 180 mm and it weighs 9 kg.
General characteristics
- HAM bands
- None
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- ?
Receiver
- RX-range
- 150-4500 kHz in 4 bands
- Modulations
- AM CW
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- TV-antenne
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 12/24 V DC, 110/220 V AC
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 350 × 230 × 180 mm (13.78 × 9.06 × 7.09 in)
- Weight
- 9.00 kg (19.9 lbs)
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx in Denmark
Other features
- Usage
- Marine / Navy
- Features + options
- 35 crystal controlled frequencies
23 in the 1600-4200 kHz range
12 in the 4.0-9.0 MHz range - Accessories
- -
- RigReference ID
- 5314
- MPN
- SAILOR-R000110
Manuals, diagrams and brochures
-
No documents available for this particular model.
