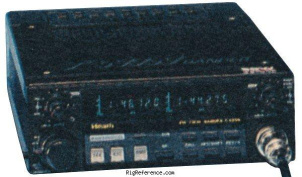

Heathkit HW-24H

Mobile VHF/UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Heathkit HW-24H is a mobile VHF/UHF transceiver. It covers 144-148 / 438-450 MHz for both transmit and receive. Tuning steps are selectable at 5 / 10 / 12.5 / 20 / 25 kHz. RF output is selectable at 1/50 W. Features include DTMF, CTCSS/PL and twin RX. It has 1 memory bank with 20 channels. Power requirements are 13.8 V DC with a current drain of 600 mA in receive mode. Dimensions are 50 × 150 × 180 mm and it weighs 1.8 kg.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ?
Tuning steps: 5 / 10 / 12.5 / 20 / 25 kHz
Memories: 20 channels in 1 bank(s)

Receiver

RX-range: 144-148 / 438-450 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-148 / 438-450 MHz
Modulations: FM
RF-output: 1/50 W

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8 V DC
Current drain RX: 600 mA
TX: ?

Physical

Dimensions (w×h×d): 150 × 50 × 180 mm (5.91 × 1.97 × 7.09 in)
Weight: 1.80 kg (4.0 lbs)
Form factor: Mobile
Manufactured: Between 198x and 199x in Japan by Standard/Marantz

Other features

Usage: Amateur / Ham radio operators
Features + options: DTMF, CTCSS/PL. Twin RX
Accessories: -
RigReference ID: 5363
MPN: HEATHKIT-HW-000024H
