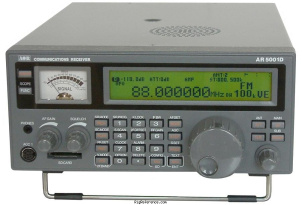

The AOR AR5001D is the successor to the legendary AOR AR-5000+3 which has long been considered the best receiver money could buy.
The new AR5001D features the popular analog signal meter along with a large easy-to-read digital spectrum display. Up to three channels can be monitored simultaneously and its advanced signal detection capabilities detect hidden transmitters which may be operating illegally and also provide protection against eavesdropping by detecting miniature transmitters (bugs). Standard features include monitoring and storage of up to 2000 frequencies, 45 MHz IF digital signal processing, direct digital sampling, a high performance analog RF front-end, and a DDS local oscillator. The AR5001D can be operated by remote control using an optional LAN controller.
With an optional GPS unit, the internal reference oscillator of the AR5001D will be locked with the GPS frequency standard signal and provide 0.01 p.p.m. accuracy.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  2m  1.25m  70cm  33cm  23cm  10m  4m  2000m  13cm
Frequency stability
0.01 p.p.m. with optional GPS unit
Tuning steps
?
Memories
2000 channels in 40 bank(s) @ 45 channels/second

Receiver

RX-range
40 kHz - 3150 MHz (cellular blocked for US consumer version)
Modulations
AM   AM-sync   FM   W-FM   CW   USB   LSB   APCO-25
Sensitivity
AM (10 dB S/N, 6 kHz BPF)
0.04-0.1 MHz: 8 µV
0.1-25 MHz: 4 µV
25-1000 MHz: 2 µV
1000-2400 MHz: 2.5 µV
2400-3000 MHz: 3.5 µV
3000-3150 MHz: 5 µV
FM (12 dB SINAD, 15 kHz BPF)
25-2400 MHz: 0.7 µV
2400-3000 MHz: 1 µV
3000-3150 MHz: 1.5 µV
W-FM (12 dB SINAD, 200 kHz BPF)
25-2400 MHz: 1.8 µV
2400-3000 MHz: 3.2 µV
3000-3150 MHz: 5 µV
SSB (10 dB S/N, 3 kHz BPF)
0.04-0.1 MHz: 2 µV
0.1-25 MHz: 1.2 µV
25-2400 MHz: 0.3 µV
2400-3000 MHz: 0.5 µV
3000-3150 MHz: 1 µV
Selectivity
AM (BW=6 kHz)
5.5 kHz (-3 dB), 6.9 kHz (-80 dB)
FM (BW=15 kHz)
14.2 kHz (-3 dB), 15.6 kHz (-80 dB)
W-FM (BW=200 Hz)
200 kHz (-3 dB), 250 kHz (-80 dB)
SSB (BW=3 kHz)
2.7 kHz (-3 dB), 3.1 kHz (-80 dB)
CW (BW=500 Hz)
380 Hz (-3 dB), 500 Hz (-80 dB)
Filters
200 / 500 Hz / 3 / 6 / 15 / 30 / 100 / 200 / 300 kHz + IF shift ability
Receiver system
DSP Direct conversion (40 kHz - 25 MHz) Double conversion (25-200 / 420-3150 MHz) Triple conversion (200-420 MHz)
IF-frequencies
1st: 295 / 1704.5 MHz
2nd: 45 / 294.5 MHz
3rd: 45 MHz
Image rejection
?
Audio output
?

Connections

Antenna
SO-239 + N-type
Impedance
50Ω
Other
-

Electrical

Power requirements
10.7-16 V DC
Current drain RX
2 A
TX
-

Physical

Dimensions (w×h×d)
220 × 97 × 304 mm (8.66 × 3.82 × 11.97 in)
Weight
5.00 kg (11.0 lbs)
Form factor
Base Station
Manufactured
Between 2010 and 20xx in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
CTCSS/DCS/DTMF
Auto-notch
NR and NB
USB and RS-232C ports
SD-card slot for digital recording and/or memory backup
45 MHz IF output
Spectrum scope
I/Q output option
Built-in voice-inversion descrambling
Accessories
-
RigReference ID
5403
MPN
AOR-AR-005001D
