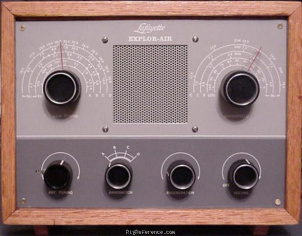

Lafayette Explor-Air (KT-135)

General characteristics

HAM bands

160m  80m  40m  20m  15m  10m

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

550 kHz - 30 MHz in 4 bands

Modulations

AM   CW

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

Regenerative

IF-frequencies

?

Image rejection

?

Audio output

Built-in 4" speaker

Connections

Antenna

SO-239

Impedance

50/75Ω

Other

-

Electrical

Power requirements

Mains (110 V AC)

Current drain RX

?

TX

-

Physical

Dimensions (w×h×d)

254 × 178 × 127 mm (10.00 × 7.01 × 5.00 in)

Weight

2.70 kg (6.0 lbs) incl. cabinet

Form factor

Base Station

Manufactured

Between 196x and 197x in USA

Other features

Usage

Amateur / Ham radio operators

Features + options

Bandspread tuning

Accessories

-

RigReference ID

5422

MPN

LAFAYETTE-EXPLOR-AIR-(KT-000135)

Manuals, diagrams and brochures

Lafayette KT-135 PDF - 10.54 MB, submitted by Olivier Grand
