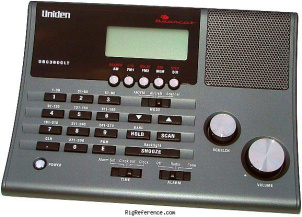

The Uniden-Bearcat UBC360CLT is a desktop HF/VHF/UHF scanner / receiver. It covers 500-1720 kHz / 25-174 / 406 - 512 / 806-960 MHz. The UBC360CLT features Channel Memory Scanning, Memory availability, Direct Channel Access, Channel Lockout, Frequency Lockout, Alarm Clock with snooze, AM/FM, Priority channel, Duplicate Channel Alert, Limit Frequency Searching, Aircraft Band Search, Turbo Scan Speed (150 chn/sec), Clock Display, LCD Backlight, Key Touch Tone, EEprom Memory Backup, Battery Alert, and Auto Power Off. It has 10 memory banks and 300 memory channels. The audio output is 900 mW. Dimensions are 148 × 209 × 81 mm. The UBC360CLT weighs 700 gr.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 kHz
- Memories
- 300 channels in 10 bank(s) @ 50 channels/second
Receiver
- RX-range
- 500-1720 kHz / 25-174 / 406 - 512 / 806-960 MHz
- Modulations
- AM FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 900 mW
Connections
- Antenna
- BNC
- Impedance
- 50/75 Ω
- Other
- -
Electrical
- Power requirements
- Mains / 12 V DC / batteries
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 209 × 148 × 81 mm (8.23 × 5.83 × 3.19 in)
- Weight
- 700 gr (1.5 lbs)
- Form factor
- Base Station
- Manufactured
- Between 20xx and 20xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Channel Memory Scanning
Memory availability
Direct Channel Access
Channel Lockout
Frequency Lockout
Alarm Clock with snooze
AM/FM
Priority channel
Duplicate Channel Alert
Limit Frequency Searching
Aircraft Band Search
Turbo Scan Speed (150 chn/sec)
Clock Display
LCD Backlight
Key Touch Tone
EEprom Memory Backup
Battery Alert
Auto Power Off - Accessories
- -
- RigReference ID
- 5437
- MPN
- UNIDEN-BEARCAT-UBC000360CLT
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Uniden-Bearcat UBC360CLT. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Uniden-Bearcat UBC360CLT is around:
- EUR 22.00
These estimates are based on the following prices:
