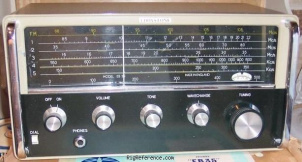

The Eddystone EB-35 Mk III (Statesman) marine communications receiver covers 150-350 / 550-1500 kHz / 1.5-3.5 / 3.5-8.5 / 8.5-22 MHz in AM and 88-108 MHz in FM. Specifications are the same as the Eddystone EB-35 Mk II but with improved semi-conductor circuitry. An optional AC power supply was available (924A) as was a 12/24 V DC supply (945A). Power supply has negative earth!
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 150-350 / 550-1500 kHz / 1.5-22 / 88-108 MHz
- Modulations
- AM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Single conversion
- IF-frequencies
- 465 kHz
- Image rejection
- ?
- Audio output
- 0.75 W
Connections
- Antenna
- SO-239
- Impedance
- 75/400Ω
- Other
- -
Electrical
- Power requirements
- 6×U2 (1.5V) battery cells
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 317 × 162 × 203 mm (12.48 × 6.38 × 7.99 in)
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 196x and 197x in Great Britain (Birmingham)
Other features
- Usage
- Marine / Navy
- Features + options
- AFC
- Accessories
- -
- RigReference ID
- 5441
- MPN
- EDDYSTONE-EB-000035-MK-III-(STATESMAN)
Manuals, diagrams and brochures
- Eddystone EB35 MkIII Instruction Manual PDF - 6.47 MB, submitted by RigReference
