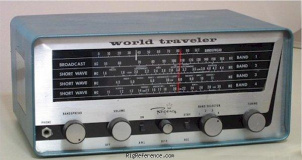

Regency WT-4

General characteristics

HAM bands

?

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

0.55-30 MHz

Modulations

AM   CW   SSB

Sensitivity

3.5 µV at 20 MHz (-6 dB, 30% modulation)

Selectivity

4.5 kHz (-6 dB)
25 kHz (-60 dB)

Filters

?

Receiver system

Single conversion

IF-frequencies

?

Image rejection

?

Audio output

1.5 W

Connections

Antenna

-

Impedance

50Ω

Other

-

Electrical

Power requirements

Mains

Current drain RX

35 W

TX

-

Physical

Dimensions (w×h×d)

496 × 160 × 362 mm (19.53 × 6.30 × 14.25 in)

Weight

6.80 kg (15.0 lbs)

Form factor

Base Station

Manufactured

Between 1958 and 196x

Other features

Usage

Amateur / Ham radio operators

Features + options

BFO
Bandspread
ANL (Autom. Noise Limiter)

Accessories

-

RigReference ID

5456

MPN

REGENCY-WT-000004

Manuals, diagrams and brochures

Realistic DX-75 Operating and Service Instructions PDF - Unknown size, submitted by RigReference

World Traveler WT-4 Operating AND Service Instructions PDF - 8.57 MB, submitted by Mike



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Regency WT-4. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Regency WT-4 in Good condition is around:

• USD 31

Price History Chart

These estimates are based on the following prices:
