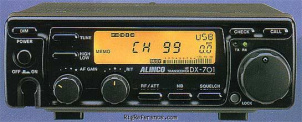

The Alinco DX-701 is a mobile transceiver. It covers 0.5-30 MHz for reception and 1.6-30 MHz for transmission. Frequency stability is ± 0.5 p.p.m. RF output is 100 W PEP for SSB and 40 W PEP for AM. Audio output is 2 W (8 ohm) or 4 W (4 ohm). It features a detachable front panel, 1 memory bank with 100 channels, and requires 13.8 V DC ± 15%. Dimensions are 58 × 178 × 228 mm. Weight is 2.7 kg. Current drain is 1.2 A (receive) and 20 A (transmit).
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m
- Frequency stability
- ± 0.5 p.p.m.
- Tuning steps
- ?
- Memories
- 100 channels in 1 bank(s)
Receiver
- RX-range
- 0.5-30 MHz
- Modulations
- AM USB LSB
- Sensitivity
- SSB
0.5-1.8 MHz: 3 µV
1.8-30 MHz: 1 µV
AM
0.5-1.8 MHz: 10 µV
1.8-30 MHz: 4 µV
All 12 dB SINAD - Selectivity
- SSB: 2.4 kHz (-6 dB) / 4.5 kHz (-60 dB)
AM: 6 kHz (-6 dB) / 18 kHz (-60 dB) - Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 71.75 MHz
2nd: 455 kHz - Image rejection
- > 70 dB
- Audio output
- 2 W (8 ohm, 10%), 4 W (4 ohm, 10%)
Transmitter
- TX-range
- 1.6-30 MHz
- Modulations
- AM USB LSB
- RF-output
- SSB: 100 W, AM: 40 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC ± 15%
- Current drain RX
- 1.2 A
- TX
- 20 A
Physical
- Dimensions (w×h×d)
- 178 × 58 × 228 mm (7.01 × 2.28 × 8.98 in) protrusions not included
- Weight
- 2.70 kg (6.0 lbs)
- Form factor
- Mobile
- Manufactured
- Between 20xx and 20xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Detachable front panel
- Accessories
- -
- RigReference ID
- 5468
- MPN
- ALINCO-DX-000701
