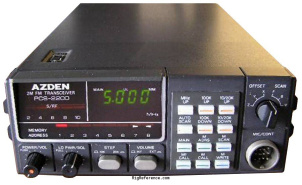

The Azden PCS-2200 is a mobile VHF transceiver. It covers 144-147.995 MHz (US version) or 144-145.995 MHz (EU version). The receiver system is double conversion superheterodyne with IF frequencies of 16.90 MHz and 455 kHz. RF output is selectable at 5 / 25 W. Audio output is 2 W at 10% distortion into 8 ohms. Power requirements are 13.8 V DC ±15%. Dimensions are 62 × 158 × 246 mm. Current drain is 0.7 A in receive and 5.0 A max in transmit.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 144-147.995 MHz (US version)
144-145.995 MHz (EU version) - Modulations
- FM
- Sensitivity
- 0.28 µV
- Selectivity
- 6 kHz @ -6 dB / 15 kHz @ -60 dB
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 16.90 MHz
455 kHz - Image rejection
- ?
- Audio output
- 2 W at 10% distortion into 8 ohms
Transmitter
- TX-range
- 144-147.995 MHz (US version)
144-145.995 MHz (EU version) - Modulations
- FM
- RF-output
- 5 / 25 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC ±15%
- Current drain RX
- 0.7 A
- TX
- 5.0 A max
Physical
- Dimensions (w×h×d)
- 158 × 62 × 246 mm (6.22 × 2.44 × 9.69 in)
- Weight
- 2.50 kg (5.5 lbs)
- Form factor
- Mobile
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5500
- MPN
- AZDEN-PCS-002200
