Alinco DR-135T MKIII

Mobile VHF Transceiver

Specs Manuals (2) Reviews (0) Prices (0) Compare

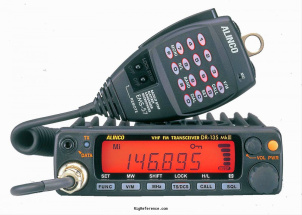

Alinco DR-135T MKIII - Submitted by Pancho Cheja

Find Alinco DR-135T MKIII rigs and spare parts on eBay

Find the Alinco DR-135T MKIII on Amazon

The Alinco DR-135T MKIII is a mobile VHF transceiver. It covers 144-148 MHz for transmit and 118-174 MHz (after modification) for receive. The receiver system is double-conversion superheterodyne with IF frequencies of 1st: 21.7 MHz and 2nd: 450 KHz. RF output is selectable between High: 50 W, Medium: 20 W, and Low: 5 W. It features CTCSS, DCS. GPS input for APRS. 1200/9600 bd packet (EJ-41U) option. RoHS compliant. Dimensions are 40 × 142 × 174 mm. The radio requires 13.8V DC +/- 15% and weighs 1 kg. Current drain is 400 mA (squelched) in receive mode and Max 11 A in transmit mode.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: 5 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 kHz
Memories: 100 channels in 1 bank(s)

Receiver

RX-range: 118-174 MHz (after modification)
Modulations: AM FM N-FM DV
Sensitivity: < -16.0 dBu (12 dB SINAD)
Selectivity: FM: 12 kHz or more (-6 dB), 28 kHz or less (-60 dB)
N-FM: 6 kHz or more (-6 dB), 16 kHz or less (-60 dB)
Filters: ?
Receiver system: Double-conversion superheterodyne
IF-frequencies: 1st: 21.7 MHz
2nd: 450 KHz
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-148 MHz
Modulations: FM N-FM DV
RF-output: High: 50 W, Medium: 20 W, Low: 5 W

Connections

Antenna: BNC
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC +/- 15%
Current drain RX: 400 mA (squelched)
TX: Max 11 A

Physical

Dimensions (w×h×d): 142 × 40 × 174 mm (5.59 × 1.57 × 6.85 in)
Weight: 1,000 gr (2.2 lbs)
Form factor: Mobile
Manufactured: Between 200x and 200x

Other features

Usage: Amateur / Ham radio operators
Features + options: CTCSS, DCS. GPS input for APRS. 1200/9600 bd packet (EJ-41U) option. RoHS compliant
Accessories: -
RigReference ID: 5507
MPN: ALINCO-DR-000135T-MKIII

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Alinco DR-135/435MK3 FXE Instruction manual PDF - Unknown size, submitted by RigReference
: Alinco DR-135/435MK3 Service manual PDF - Unknown size, submitted by RigReference
