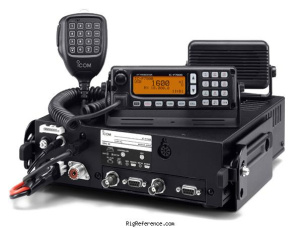

The ICOM IC-F7000 is a mobile shortwave transceiver covering 0.5-29.999 MHz for both receive and transmit. It supports multiple communication modes for licensed amateur radio operators, including AM, SSB, and CW. The rig features Selcall capability and digital signal processing for improved noise reduction. With a maximum RF output of 100 W PEP, it also includes a 4 W audio output. It has 500 memory channels across one bank and operates on DC power at 13.8V. Weighing 5.2 kg (main unit + controller + speaker), this transceiver is designed for commercial use with dimensions of 240x72x239 mm. Manufactured in Japan, it supports HF email functionality with appropriate equipment.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 500 channels in 1 bank(s)
Receiver
- RX-range
- 0.5-29.999 MHz
- Modulations
- AM SSB
- Sensitivity
- 0.5-1.599 MHz
AM: 100 µV
SSB: 12.6 µV
1.6-29.99 MHz
AM: -
SSB: 0.5 µV - Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- > 70 dB
- Audio output
- 4 W, 10% THD, 4 ohm
Transmitter
- TX-range
- 1.6-29.999 MHz
- Modulations
- AM SSB
- RF-output
- 10 / 50 / 100 W PEP
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 3 A
- TX
- 11-17 A
Physical
- Dimensions (w×h×d)
- 240 × 72 × 239 mm (9.45 × 2.83 × 9.41 in) Main unit
- Weight
- 5.20 kg (11.5 lbs) Main unit + controller + speaker
- Form factor
- Mobile
- Manufactured
- Between 20xx and 20xx in Japan
Other features
- Usage
- Commercial / Land mobile communication
- Features + options
- Selcall capability, compatible with Barrett, Codan radios
Large memory capability (500 regular, 100 Telephone Number, 120 ALE address, 100 Selcall address)
HF E-mail capability (Appropriate PC, modem and network required)
Digital Signal Processing DSP for improved noise reduction
Multiple communication modes support (for users with Amateur Radio License) - Accessories
- -
- RigReference ID
- 5509
- MPN
- ICOM-IC-F007000
