Belcom Liner 10

Desktop 10m Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Belcom Liner 10 rigs and spare parts on eBay

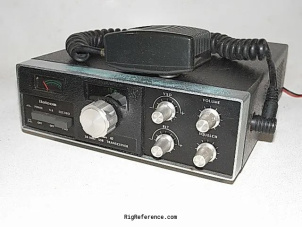

The Belcom Liner 10 is a 10 m transceiver. It has an RF output of 10 W PEP and audio output of 2 W. Features include VXO, NB, and RIT. It comes with an external VFO accessory. The radio requires 13.8 V DC power. Dimensions are 70 × 220 × 250 mm.

General characteristics

HAM bands: 10m
Frequency stability: ?
Tuning steps: ?
Memories: None

Receiver

RX-range: 10 m
Modulations: CW SSB
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: Double conversion superheterodyne
IF-frequencies: ?
Image rejection: ?
Audio output: 2 W

Transmitter

TX-range: 10 m
Modulations: CW SSB
RF-output: 10 W (PEP)

Connections

Antenna: SO-239
Impedance: 52Ω
Other: -

Electrical

Power requirements: 13.8 V DC
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 220 × 70 × 250 mm (8.66 × 2.76 × 9.84 in)
Weight: 3.00 kg (6.6 lbs)
Form factor: Base Station
Manufactured: Between 1971 and 197x in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: VXO
NB
RIT
Accessories: External VFO
RigReference ID: 5515
MPN: BELCOM-LINER-000010

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!
