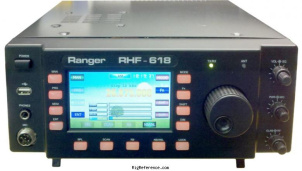

Ranger RHF-618

General characteristics

HAM bands

?

Frequency stability

0.001%

Tuning steps

100 Hz / 1 / 10 / 100 / 1000 kHz

Memories

99 channels in 1 bank(s)

Receiver

RX-range

24-32 MHz

Modulations

AM   FM   CW   USB   LSB

Sensitivity

AM / CW: 0.5 µV for 10 dB SINAD
FM: 0.25 µV for 12 dB SINAD
SSB: 0.15 µV for 10 dB SINAD

Selectivity

?

Filters

?

Receiver system

Microprocessor / Phase-Locked-Loop Synthesizer

IF-frequencies

?

Image rejection

65 dB

Audio output

2.5 Watts @ 10% THD into 8 W

Transmitter

TX-range

24-32 MHz
10 / 12 m

Modulations

AM   FM   CW   USB   LSB

RF-output

AM/FM/CW: 2-10 W, SSB: 25 W PEP

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8 V DC or mains

Current drain RX

?

TX

8 A max

Physical

Dimensions (w×h×d)

285 × 110 × 335 mm (11.22 × 4.33 × 13.19 in)

Weight

?

Form factor

Mobile

Manufactured

Between 2011 and 201x

Other features

Usage

Amateur / Ham radio operators

Features + options

NB / ANL
Split frequency
Programmable Repeater Offset
Roger beep
Echo chamber
4.3" TFT LCD display
Clock / calendar
Soft buttons
USB-socket with picture viewer and background image loader

Accessories

-

RigReference ID

5516

MPN

RANGER-RHF-000618
