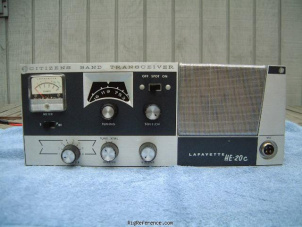

Lafayette HE-20C

Desktop Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Lafayette HE-20C rigs and spare parts on eBay

The Lafayette HE-20C is a transceiver covering the 11m band for both receive and transmit. It has an RF output of 5 W and an audio output of 2 W. The radio features 23 memory channels in one bank, illuminated S-meter, and squelch control. It operates on mains power and its dimensions are 127 × 305 × 216 mm.

General characteristics

HAM bands: 11m (CB)
Frequency stability: ?
Tuning steps: Channelized
Memories: 23 channels in 1 bank(s)

Receiver

RX-range: 11m
Modulations: AM
Sensitivity: 1 µV
Selectivity: ?
Filters: ?
Receiver system: tubes
IF-frequencies: ?
Image rejection: ?
Audio output: 2 W

Transmitter

TX-range: 11m
Modulations: AM
RF-output: 5 W

Connections

Antenna: SO-239
Impedance: ?
Other: -

Electrical

Power requirements: Mains
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 305 × 127 × 216 mm (12.01 × 5.00 × 8.50 in)
Weight: ?
Form factor: Base Station
Manufactured: Between 1964 and 196x in USA

Other features

Usage: Citizen Band (27Mc)
Features + options: Illuminated S-Meter
Squelch control
Accessories: -
RigReference ID: 5522
MPN: LAFAYETTE-HE-000020C
