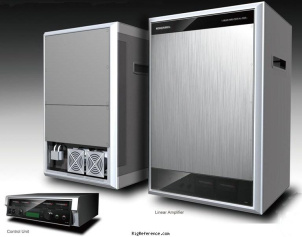

The Kojinsha KL-1 is a massive, rigid floor mounted linear amplifier. A separate Control Unit can be placed up to 20 meters from the floor console (standard cable is 7m). The KL-1 is controlled from your transceiver using an RS-232 interface. Compatible radios include the Kenwood TS-950, TS-2000, TS-590, etc. The Yeasu FTDX-9000, FTDX-5000, FT-2000, etc. And the ICOM IC-7800, IC-7700 IC-7600, etc.

A USB interface on the control unit allows full control from a PC.

In size, the KL-1 reminds of the E.F. Johnson Desk Kilowatt built over 50 years ago.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m
Frequency stability
?
Tuning steps
?
Memories
6 channels in bank(s)

Transmitter

TX-range
160-10m
Modulations
CW   SSB
RF-output
4 kW (5kW max)

Connections

Antenna
BNC + SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
Mains
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
320 × 167.5 × 107 mm (12.60 × 6.59 × 4.21 in) Control unit, floor console: 478 × 564 × 800 mm
Weight
109.50 kg (241.6 lbs) Floor console + control unit
Form factor
Base Station
Manufactured
Between 2011 and 20xx in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
RS232C
USB
SteppIR interface
6 × antenna switch
3cx3000a7 triode power tube
Accessories
-
RigReference ID
5529
MPN
KOJINSHA-KL-000001

Manuals, diagrams and brochures

No documents available for this particular model.
