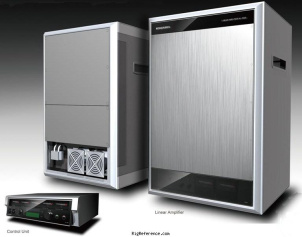

The Kojinsha KL-1 is a massive, rigid floor mounted linear amplifier. A separate Control Unit can be placed up to 20 meters from the floor console (standard cable is 7m). The KL-1 is controlled from your transceiver using an RS-232 interface. Compatible radios include the Kenwood TS-950, TS-2000, TS-590, etc. The Yeasu FTDX-9000, FTDX-5000, FT-2000, etc. And the ICOM IC-7800, IC-7700 IC-7600, etc.
A USB interface on the control unit allows full control from a PC.
In size, the KL-1 reminds of the E.F. Johnson Desk Kilowatt built over 50 years ago.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 6 channels in bank(s)
Transmitter
- TX-range
- 160-10m
- Modulations
- CW SSB
- RF-output
- 4 kW (5kW max)
Connections
- Antenna
- BNC + SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 320 × 167.5 × 107 mm (12.60 × 6.59 × 4.21 in) Control unit, floor console: 478 × 564 × 800 mm
- Weight
- 109.50 kg (241.6 lbs) Floor console + control unit
- Form factor
- Base Station
- Manufactured
- Between 2011 and 20xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- RS232C
USB
SteppIR interface
6 × antenna switch
3cx3000a7 triode power tube - Accessories
- -
- RigReference ID
- 5529
- MPN
- KOJINSHA-KL-000001
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kojinsha KL-1. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Linear Amplifier equipment, the estimated value of the Kojinsha KL-1 is around:
- USD 991 ~ USD 1,841
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
