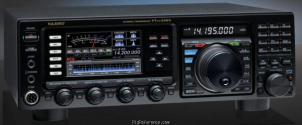

The Yaesu FTdx3000 is a HF / 50 MHz transceiver with a frequency range of 0.03-56 MHz (receive) and 1.8-54 MHz (transmit). It features a double conversion superheterodyne receiver system, Hi-perf crystal roofing filters, a 4.3 inch TFT screen, high speed spectrum scope, 32-bit IF-DSP, 9 MHz IF output, built-in auto-ATU, USB, CAT and µ-tune ports, and 3 × SO-239 connectors. The RF output is 5-100 W (AM: 2-25 W) with an audio output of 2.5 W into 4 Ohms. The transceiver weighs 10 kg and measures 115 × 365 × 312 mm. It requires 13.8 V DC ± 10% (Negative Ground). Current drain is 1.8-2.1 A (receive) and 23 A (transmit).
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m
- Frequency stability
- ±0.5 p.p.m. (after 1 minute @+14 °F to +122 °F [–10 °C to +50 °C])
- Tuning steps
- AM/CW/SSB: 1/10 Hz, FM: 0.1 kHz
- Memories
- ?
Receiver
- RX-range
- 0.03-56 MHz
- Modulations
- AM FM CW USB LSB RTTY
- Sensitivity
- SSB (BW: 2.4 kHz, 10 dB S+N/N)
4 µV (0.5 - 1.8 MHz) (IPO “ON”)
0.16 µV (1.8 - 30 MHz) (RF AMP 2 “ON”)
0.125 µV (50 - 54 MHz) (RF AMP 2 “ON”)
AM (BW: 6 kHz, 10 dB S+N/N, 30 % modulation @400 Hz)
28 µV (0.5 - 1.8 MHz) (IPO “ON”)
2 µV (1.8 - 30 MHz) (RF AMP 2 “ON”)
1 µV (50 - 54 MHz) (RF AMP 2 “ON”)
FM (BW: 15 kHz, 12 dB SINAD)
0.5 µV (28 - 30 MHz) (RF AMP 2 “ON”)
0.35 µV (50 - 54 MHz) (RF AMP 2 “ON”) - Selectivity
- CW/RTTY/PKT 0.5 kHz or better 750 Hz or less
SSB 2.4 kHz or better 3.6 kHz or less
AM 6 kHz or better 15 kHz or less
FM 15 kHz or better 25 kHz or less - Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: Main: 9 MHz
2nd: Main: 30 kHz (SSB/CW), 24 kHz (FM/AM) - Image rejection
- HF: ≥ 70 dB 6m: ≥ 60 dB
- Audio output
- 2.5 W into 4 Ohms with 10% THD
Transmitter
- TX-range
- 1.8-54 MHz (amateur bands only)
- Modulations
- AM FM CW USB LSB RTTY
- RF-output
- 5-100 W (AM: 2-25 W)
Connections
- Antenna
- SO-239
- Impedance
- 50 (16.7-150 depending on band)Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC ± 10% (Negative Ground)
- Current drain RX
- 1.8-2.1 A
- TX
- 23 A
Physical
- Dimensions (w×h×d)
- 365 × 115 × 312 mm (14.37 × 4.53 × 12.28 in)
- Weight
- 10.00 kg (22.1 lbs)
- Form factor
- Base Station
- Manufactured
- Between 2012 and 20xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Hi-perf crystal roofing filters
4.3 inch TFT screen
High speed spectrum scope
32-bit IF-DSP
9 MHz IF output
Built-in auto-ATU
USB, CAT and µ-tune ports
3 × SO-239 connectors - Accessories
- -
- RigReference ID
- 5552
- MPN
- YAESU-FTDX003000
Manuals, diagrams and brochures
- Yaesu FTDx-3000 Leaflet PDF - 8.36 MB, submitted by RigReference
- Yaesu FTDx-3000 Operation Manual PDF - 32.53 MB, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FTdx3000. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Yaesu FTdx3000 is around:
- EUR 570.00 ~ EUR 1012.00
- USD 1331.00 ~ USD 1325.00
